RANGER XP® 1000 HD EPS

UNDISPUTED KING OF POWER

The RANGER XP 1000 delivers the utility performance and acceleration you expect from the industry's most premium SxS. Its ProStar® 1000 engine delivers 82 HP and 62 lb-ft of torque to take on the toughest tasks.

Ranger XP® 1000 HD EPS

62 lb-ft Torque 6-Position
11 in. Suspension Travel
3-Mode Throttle Control
Engine Braking System
Premium Interior Chrome Accents
Polaris Pulse Bus Bar

Ranger XP® 1000 EPS

62 lb-ft Torque
11 in. Suspension Travel
3-Mode Throttle Control
Engine Braking System
Premium Interior Chrome Accents
6-Position Polaris Pulse Bus Bar

*This model does not have Heavy Duty Features or Active Descent Control

More Rugged. More Refined. More Ranger

With over one hundred owner-inspired improvements, the all-new Ranger XP^® 1000 HD EPS sets a new standard for what a off road utility can do. Its modern rugged design, next-level in-cab comfort, and industry-leading towing and ground clearance make this machine the hardest-working, smoothest-riding SxS ever built.

THE MOST RUGGED OFF ROAD UTILITY EVER BUILT

The Ranger XP^® 1000 HD EPS gives you more rugged capability features to tackle the toughest jobs, trails, and hunts.

New! Aggressive new style and stance on a one-piece chassis.
New! Industry-leading 82 HP and unmatched torque.
New! Industry-leading 2,500 lb towing capacity.
New! 27-inch, 6-ply tires are taller and wider.
New! Industry-leading 13 inches of ground clearance.
New! Massive front bumper and full body skid plate for 45% more protection.

THE MOST REFINED OFF ROAD UTLITY VEHICLE EVER BUILT

The Ranger^® 1000 HD EPS has hundred of next-level comfort and convenience features inspired by Ranger owners, making work easier on you in every way possible.

New! Completely redesigned interior centered around you, the driver.
New! Thicker, more comfortable seats.
New! 51 liters of secure in-cab storage including a double glove box and a flip up passenger seat.
New! Next-level accessory integration with pre-wired features and new integration points.
New! Tighter turning radius and more precise steering.

CUSTOMIZE YOUR RANGER^® FOR HOW YOU WORK & RIDE

POLARIS ENGINEERED ACCESSORIES
With over 200 accessories for the new Ranger XP^® 1000 HD EPS, you can be sure Polaris has what you need to work longer or ride farther. Start with the ultimate in all-season performance and comfort from the best cab system in the industry. The Ranger Pro shield Cab System keeps 3X more Dust, 2X more Rain and 1.5X more Noise out of the cab than the competition. Then add in lighting, wheels, tires, a winch, the Glacier Plow System and more - so you can go farther and get more done than you ever have before.

Full Heavy Duty HD Spec

The Ranger 1000 HD EPS has:

Upgraded sealed suspension bushes.
Sealed Drive Shaft Splines.
Park Brake with Park Brake "left on" alert.
Active Descent Control ADC.
Inner LHS rear guard (muffler provides barrier on RHS).
Upgraded Wheel Bearings.
Reinforced Skid Plate.

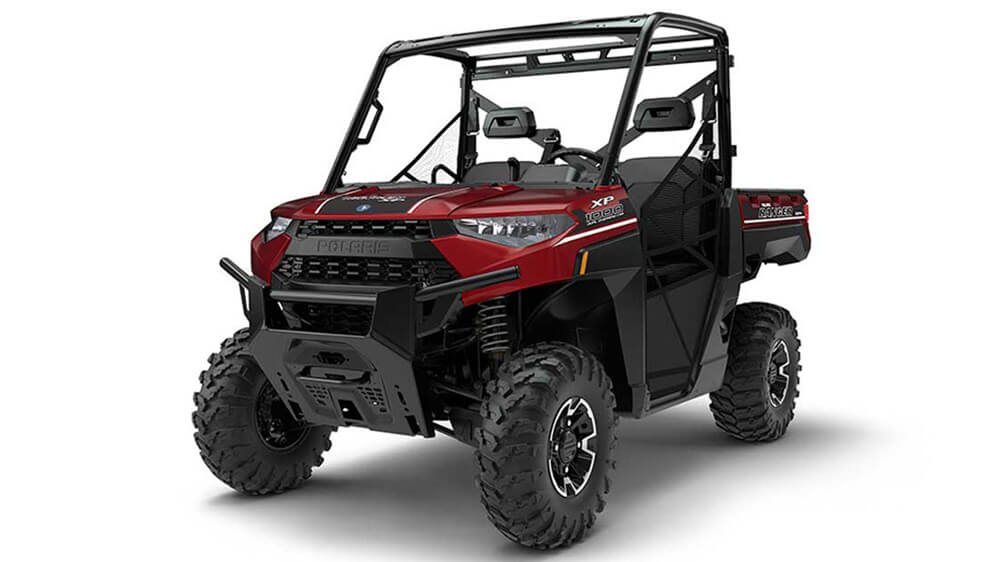

RANGER XP 1000 HD EPS

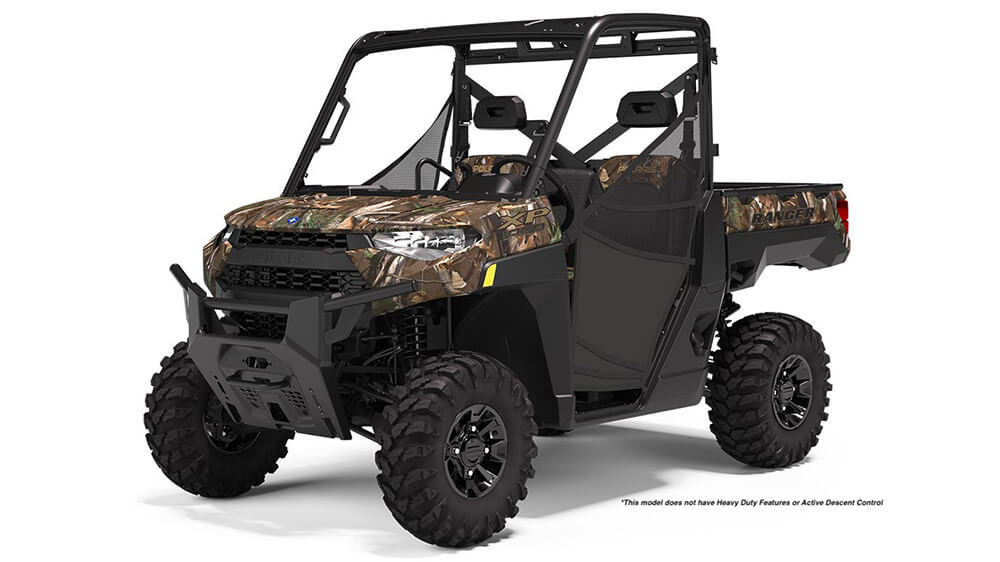

RANGER XP 1000 EPS - CAMO

ENGINE & DRIVETRAIN

Engine Type	4-Stroke DOHC Twin Cylinder	4-Stroke Twin Cylinder
Cylinders-Displacement (cc)	999cc	999cc
Fuel System/Battery	Electronic Fuel Injection	Electronic Fuel Injection
Cooling	Liquid	Liquid
Transmission/Final Drive	Automatic PVT H/L/N/R/P; Shaft	Automatic PVT H/L/N/R/P; Shaft
Drive System Type	Pro-Lock On-Demand AWD/2WD/ VersaTrac Turf Mode with 3-Mode Throttle Control	Pro-Lock On-Demand AWD/2WD/ VersaTrac Turf Mode with 3-Mode Throttle Control
Engine Braking System/Active Descent Control	Standard / Standard	Standard / Not Equipped

Suspension

Front Suspension	Dual A-Arm 27.9 cm Travel	Dual A-Arm 27.9 cm Travel
Rear Suspension	Dual A-Arm, IRS 27.9 cm Travel	Dual A-Arm, IRS 27.9 cm Travel

Brakes

Front/Rear Brakes	4-Wheel Hydraulic Disc with Dual-Bore Front Calipers	4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake	Park in Transmission & Hand Brake	Park in Transmission

Tyres / Wheels

Front Tyres	27 x 9-12 Maxxis MU51	27 x 9-12 Maxxis
Rear Tyres	27 X 11-12 Maxxis MU51	27 x 11-12 Maxxis
Wheels	Cast Aluminum	Cast Aluminum

DIMENSIONS

Wheelbase	206 cm	206 cm
Estimated Dry Weight	709.9 kg	697 kg
Overall Vehicle Size (L x W x H)	305 x 158 x 196 cm	305 x 158 x 196 cm
Ground Clearance	33 cm	33 cm
Seating Capacity	3	3
Fuel Capacity	43.5 L	43.5 L
Bed Box Dimensions (L x W x H)	93.3 x 137.8 x 31.75 cm	93.3 x 137.8 x 31.75 cm
Front/Rear Rack or Box Capacity	N.A / 454 kg	N.A / 454 kg
Payload Capacity	680.4 kg	680.4 kg
Hitch Towing Rating	1,134 kg	1,134 kg
Hitch/Type	Standard/2" Receiver	Standard/2" Receiver

Features

Cargo System	Lock & Ride®	Lock & Ride®
Lighting	55W low/ 60W high, LED Tail	55W low/ 60W high, LED Tail
Electronic Power Steering	Standard	Standard
Instrumentation	Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Hi-Temp, Coolant Temperature, Voltmeter, Service Indicator, Seat Belt Reminder, DC Outlets (2)	Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Hi-Temp, Coolant Temperature, Voltmeter, Service Indicator, Seat Belt Reminder, DC Outlets (2)
Other Standard Features	Polaris Pulse^™ Electrical System, Premium Cut & Sew Seats	Polaris Pulse^™ Electrical System, Premium Cut & Sew Seats
Colours	Sunset Red	Pursuit^® Camo
